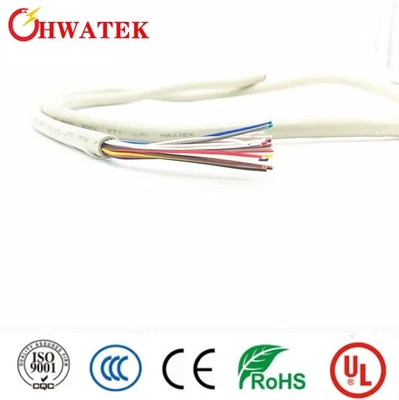

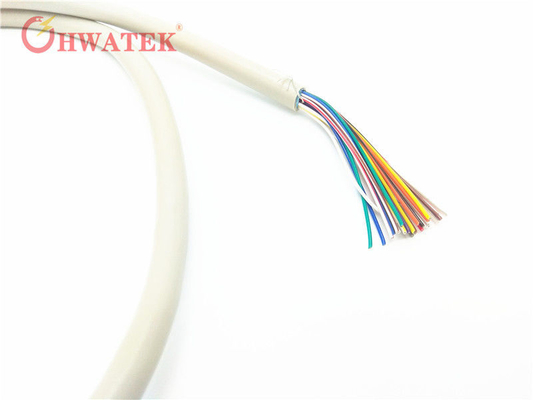

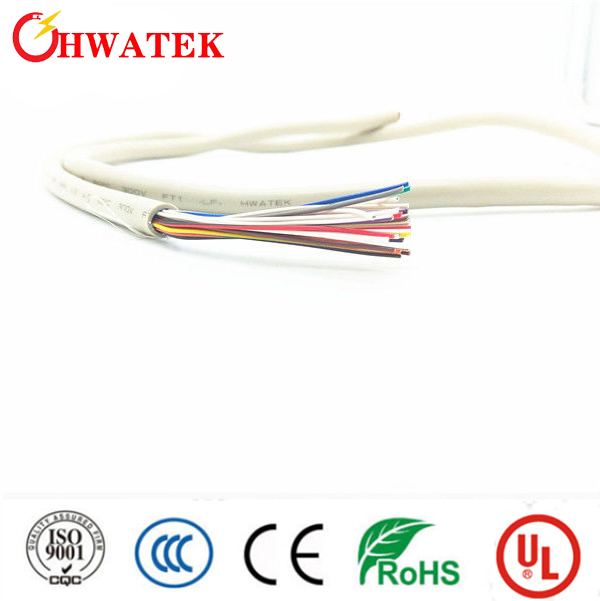

UL21411 Braided Electric Copper Cable Wire
Product Specifications
| Attribute | Value |
| Model NO. | UL21411 |
| Sheath Material | XLPE |
| Insulation Material | PVC, PE, XLPE |
| Material Shape | Round Wire |
| Range of Application | Industrial Control |
| Brand | Hwatek |
| Color | Optional |
| Qty/Roll | 305m, 610m or as Request |
| OEM/ODM | Accepted |
| Package | Reels or Rolls |
| Transport Package | Rolled in Reels, Packed in Pallets |
| Trademark | Hwatek |
| Origin | China |
| HS Code | 8544492100 |
Product Description
Designed for use in communication equipment, instruments, industrial control systems, and electronic/electrical equipment applications.
Applications
Internal wiring or external interconnection of electronic equipment.
Application Standard
UL758 & UL1581 & CSA C22.2 No.210
Product Characteristics
- Excellent insulation performance with stable chemical properties
- Passes UL VW-1 and CSA FT1 vertical flame test
- High-temperature resistance, anti-acid, and environmentally friendly
Construction
- Tinned or bare copper, stranded or single conductor
- PVC, PE, or XLPE insulation
- Two or more single-core wires twisted into pair or cabling to form round, flat, or oval-shaped cable
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- XLPE jacket
Technical Parameters
Rated temperature: 125°C
Rated Voltage: 300V
Product Specifications
| Product Number | Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (200°C) Ω/km |
| HT21411**101 | 3C
28 AWG
7/0.127
0.38mm | 0.26mm
0.80mm | 0.025mm
0.10mm | 0.80mm
3.80mm | 223 |
| HT21411**102 | 3C
26 AWG
7/0.16
0.48mm | 0.26mm
0.90mm | 0.025mm
0.10mm | 0.80mm
4.04mm | 140 |
| HT21411**103 | 3C
24 AWG
11/0.16
0.60mm | 0.26mm
1.12mm | 0.025mm
0.10mm | 0.80mm
4.51mm | 87.6 |
| HT21411**104 | 3C
22 AWG
17/0.16
0.76mm | 0.26mm
1.30mm | 0.025mm
0.10mm | 0.80mm
4.90mm | 55.4 |
| HT21411**105 | 6C
28 AWG
7/0.127
0.38mm | 0.26mm
0.80mm | 0.025mm
0.12mm | 0.80mm
4.70mm | 223 |
| HT21411**106 | 6C
26 AWG
7/0.16
0.48mm | 0.26mm
0.90mm | 0.025mm
0.12mm | 1.00mm
5.30mm | 140 |
| HT21411**107 | 6C
24 AWG
11/0.16
0.60mm | 0.26mm
1.12mm | 0.025mm
0.12mm | 1.00mm
6.00mm | 87.6 |
Note: Optional core wire number 2C-50C, and shielding way available.
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
Certified with ISO9001, ISO14001, IATF16949, and ISO13485 systems, all products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications.
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We hold UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we can arrange samples for evaluation.
Q: What's your lead time?
A: Standard lead time is 2-3 weeks, extending to 5-6 weeks during peak seasons.
Q: How do you guarantee product quality?
A: We conduct pre-production sampling and final inspection before shipment to ensure quality standards.
Major Customers
We serve global customers across various industries through our established sales network.
