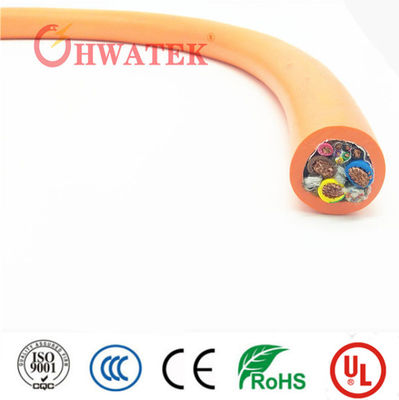

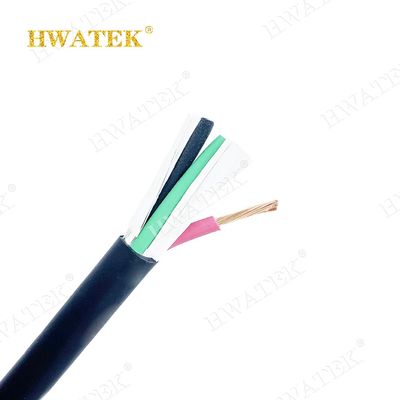

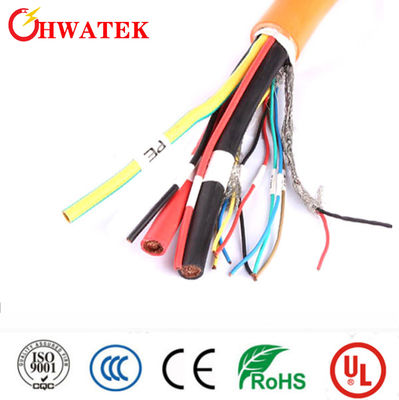

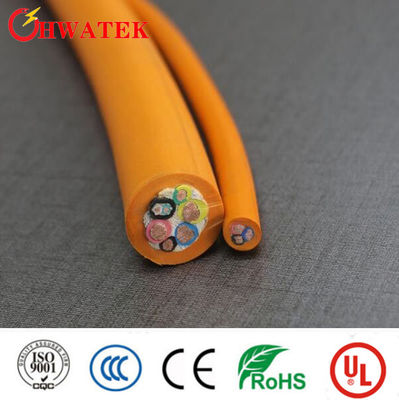

High Performance EV Charging Cable with -40~90ºC Temperature Range 63A and 32A Current Options for Electric Vehicles

Trading Properties
Minimum Order Quantity: 1000 متر
Price: US $0.5-5 / Meter
Tags

کابل شارژ خودرو الکتریکی

سیم شارژر,سیم شارژ سیم

کابل برق شارژ خودرو
Product Summary
AC Charging Cable/Structure (EV Cable) Product Description Application range: Designed for connecting electric vehicle charging equipment to vehicles, including various EVs, charging stations, swap stations, and charging piles. Application Standards GB/T33594-2017, GB/T20234-2017 K175-2 Product ...

Product Details

برجسته کردن:

-40~90ºC Temperature Range EV Charging Cable

,

63A Current EV Charging Cable

,

32A Current Electric Vehicle Charging Cable
Conductor Material: نوع ششم مس لخت/مس مخروطی
Insulation Material: لاستیک مصنوعی الاستومر/TPE
Sheath Material: TPE/TPU
Temperature Range: -40 ~ 90 درجه سانتیگراد
Rated Voltage: 450/750 ولت AC
Current Capacity: 10a ، 16a ، 32a ، 63a
Conductor Size: 1.5mm2، 2.5mm2، 6mm2، 16mm2

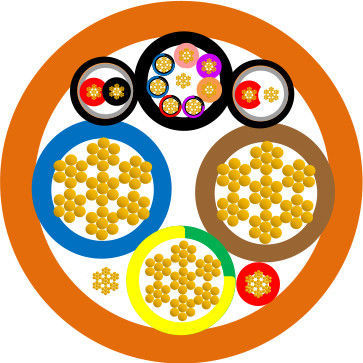

Cable Construction: 3x16mm2+2x2.5mm2+1p (2x0.75mm2) ، 5x16mm2+2x2.5mm2+1p (2x0.75mm2) ، 5x6mm2+1p (2x0.75mm2) ، 3x6mm2+1
Flame Resistance: بالا
UV Resistance: بله
Oil Resistance: بله
Cold Resistance: بله
Moisture Resistance: بله
Flexibility: بالا
Production Capacity: 20 کیلومتر در روز
Product Description
AC Charging Cable/Structure (EV Cable) Product Description Application range: Designed for connecting electric vehicle charging equipment to vehicles, including various EVs, charging stations, swap stations, and charging piles. Application Standards GB/T33594-2017, GB/T20234-2017 K175-2 Product Features Wear resistance Oil resistance UV resistance Cold resistance High flame resistance Moisture resistance High flexibility Technical Specifications Conductor: Type VI stranded
