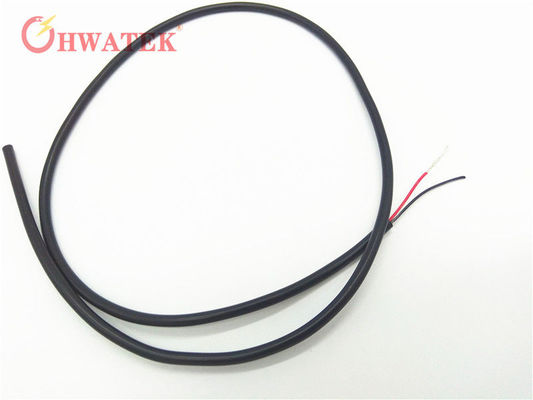

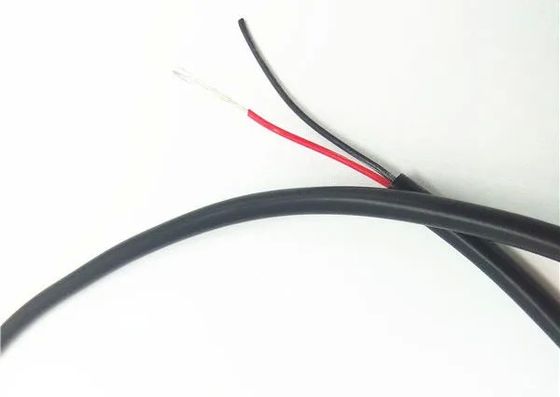

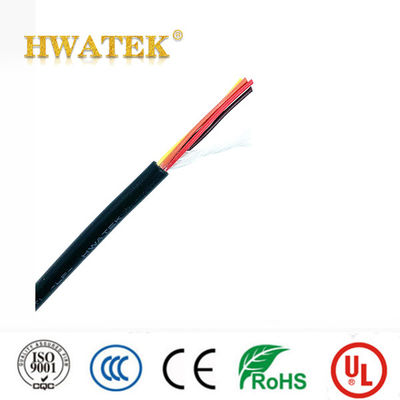

UL2661 2C×20AWG Bare copper stranded Industrial Flexible Cable wIth PVC Insulation PVC Jacket
| Construction |
| Conductor |
Bare copper stranded |
| Cross section |
20AWG |
| Construction |
26/0.16mm |
| Strand Dia. |
0.94mm |
| Insulation |
PVC |
| Nom.Thickness |
0.23mm |
| Min.Thickness |
0.18mm |
| Insulation Dia. |
1.50±0.10mm |
| Insulation colour |
1.red 2.black |
| Assembly |
2C×20AWG |
| Jacket |
PVC |
| Nom.Thickness |
0.76mm |
| Min.Thickness |
0.61mm |
| Outer Dia. |
4.60±0.20mm |
| Colour |
Black |
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor or machine
Product character:
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:121±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
Insulation:PVC
Conductor : Bare copper stranded
Construction
Insulation: 1.red 2.black
Jacket Color : black
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:UL2661
RoHS
Technical data
Rated voltage:300V
Rated Temperature: 90℃
Max.conductor DC resistance(20℃):34.6Ω/km
Dielectric Strength AC:2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Flexible
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
